The Story

This LED PIR Occupancy/Daylight Sensor from Keystone is used for a number of applications including corridors, parking garages, warehouses, and showrooms. It is compatible with the below Keystone Corn Cob Retrofit Bulbs:

  • LEDCORN1000051504
  • LEDCORN1000051505
  • LEDCORN1000051506
  • LEDCORN1000051507
  • LEDCORN1000051508
  • LEDCORN1000051509
  • LEDCORN1000051510
  • LEDCORN1000051511

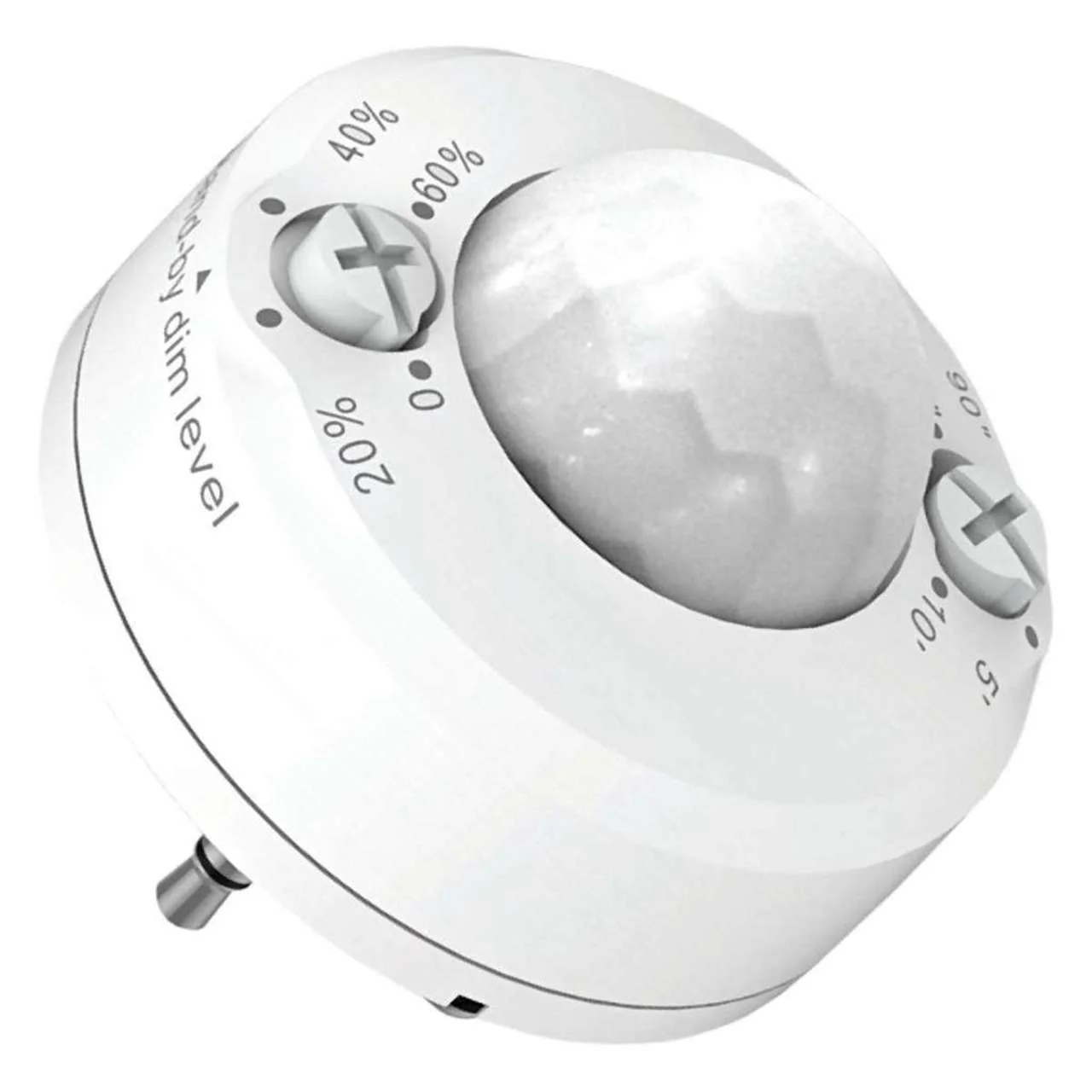

This occupancy sensor has an On/Off with adjustable standby dimming level and a fixed daylight threshold. The connection method is through the 3.5mm standard AUX port. It is also able to operate in a range of temperatures including -4ºF/-20ºC to 140ºF/60ºC. Additionally, this occupancy sensor features the following specs:

  • Input Voltage: 12V
  • Output Voltage: 0-10V
  • Operating Current: 20mA
  • Detection Angle: 120 Degrees
  • Max Mounting Height: 20ft.
  • Detection Radius (at Max Mounting Height): 13.2ft.
  • Standby Dimming Levels: 0%, 20%, 40%, 60%
  • Hold Time Options: 30 seconds, 90 seconds, 5 minutes, 10 minutes

Product Dimensions: 2.06" H x 1.69" Dia.

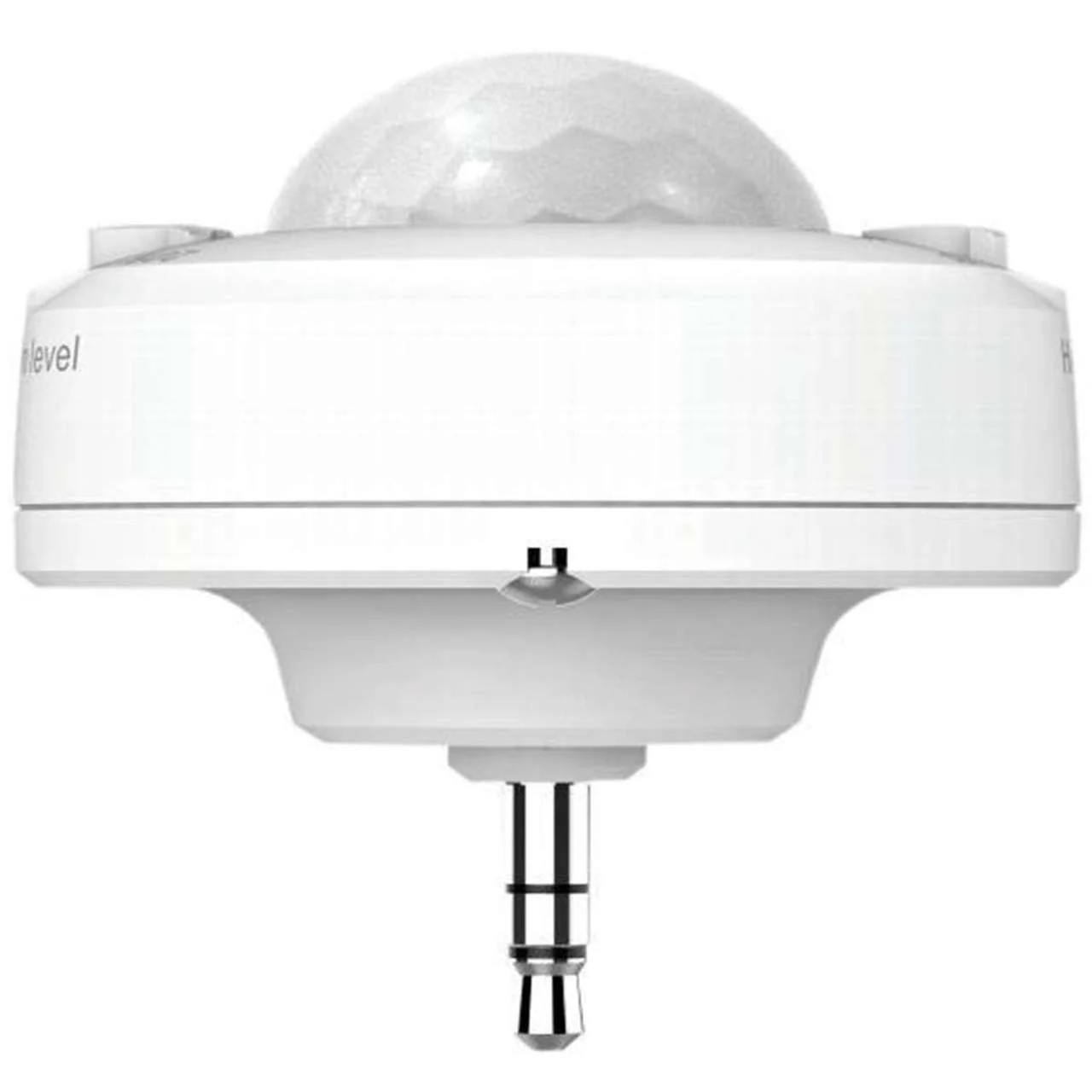

LED PIR Occupancy/Daylight Sensor - 12V Input - Keystone - Image 2
