8in. LED Round LRX Lumination Retrofit Downlight - 35W - 3500 Lumens - 3500K - GE

The Lumination LRX Series LED downlights are the ideal retrofit solution for traditional downlight fixtures.  They install in just minutes into most 10-inch rough-in frames and bring a fresh look to the space. Unlike plug-in LED lamps, the LRX downlight gives you a new power supply and 50,000 hour life rating, so that you won't have to worry bout compatibility or maintenance issues with the original ballast. All downlights in the LRX family utilize a non-conductive polycarbonate trim perfect for wet rated applications. The LRX can also be used for new construction applications with a new fram kit (sold separately).

Construction:

• 16 gauge aluminum spinning reflector housing, powder coating
• Custom engineered heat sink flange for passive cooling

Installation:

• Fixture mounting to an existing metal frame, or install with a new frame kit (ordered separately), interior ceiling applications only.

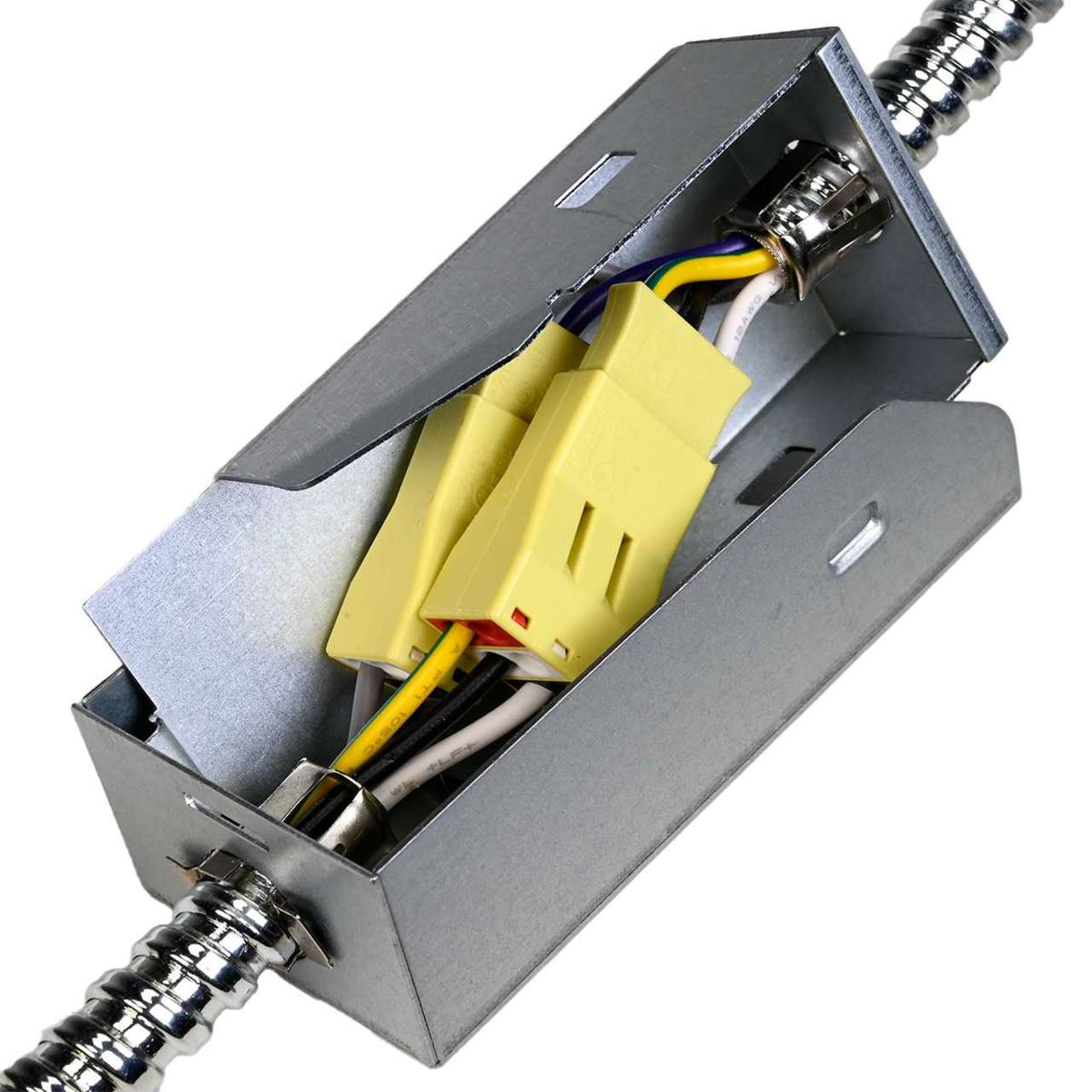

• Conduit connect to quick-disconnect for easy installation

Optical System:

• Custom engineered reflectors for wide distributions
• Semi-diffuse diffuser for ideal combination of optical efficiency and uniformity

Electrical System:

• High efficiency, integrated driver with 01-V dimming

Specifications:

• Input Voltage: 120-277V
• Standard Dimming Controls: 0-10V down to 10%
• CCT: 3500K
• CRI: 82
• Lifetime Rating: L85 @ 50,000 Hours
• Input Frequency (Hz): 50/60Hz
• Power factor: >0.9

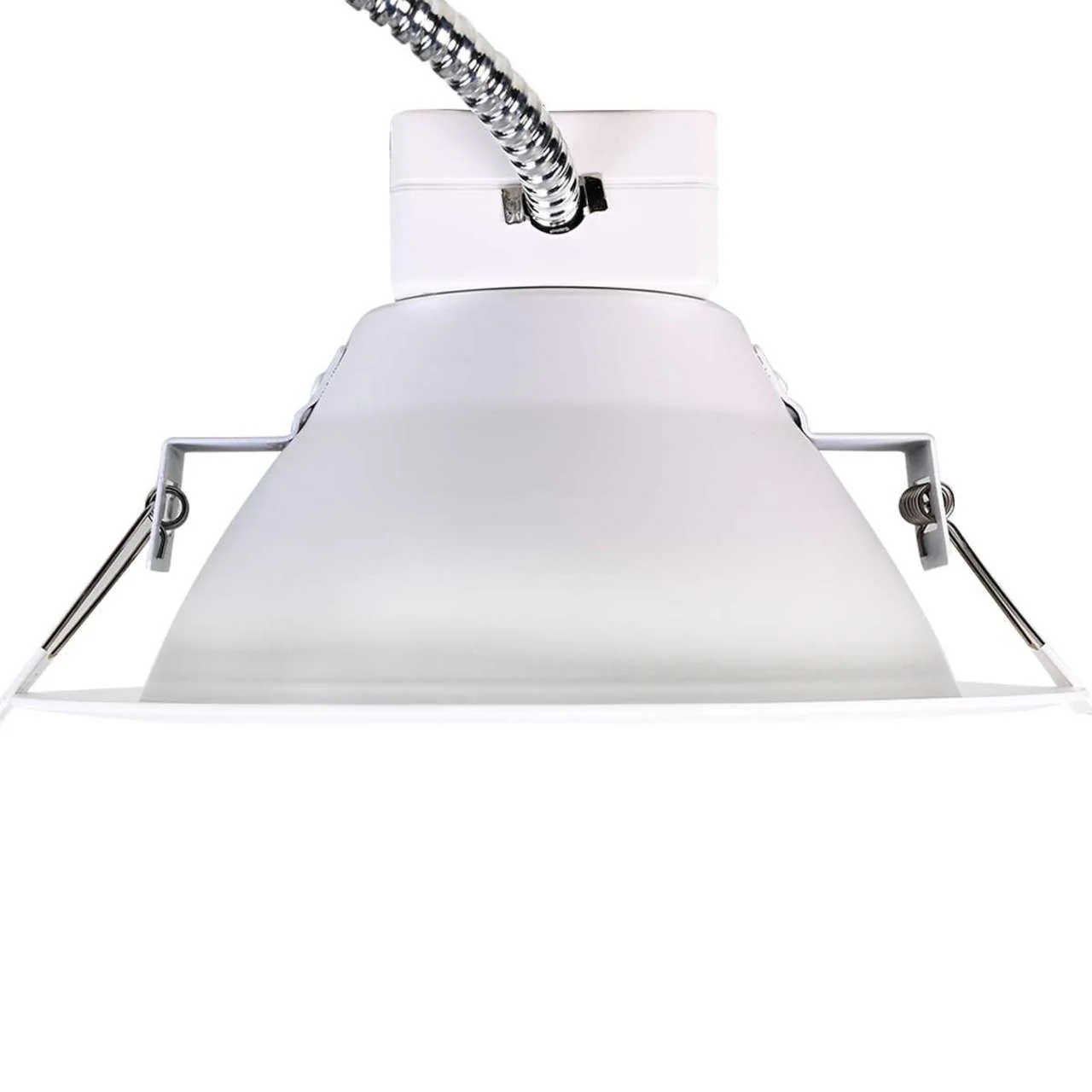

• Mounting Options: Spring clips clamp onto existing frame
• IC Rating: Non-IC Rating
• Limited Warranty: 5 years
• Operating temperature: -10C to 40C
• Listings: UL and cUL Listed

Dimensions:

• Ceiling Opening: 7.7" min
• Fixture Dimensions: 9.75" Dia x 5.1" D

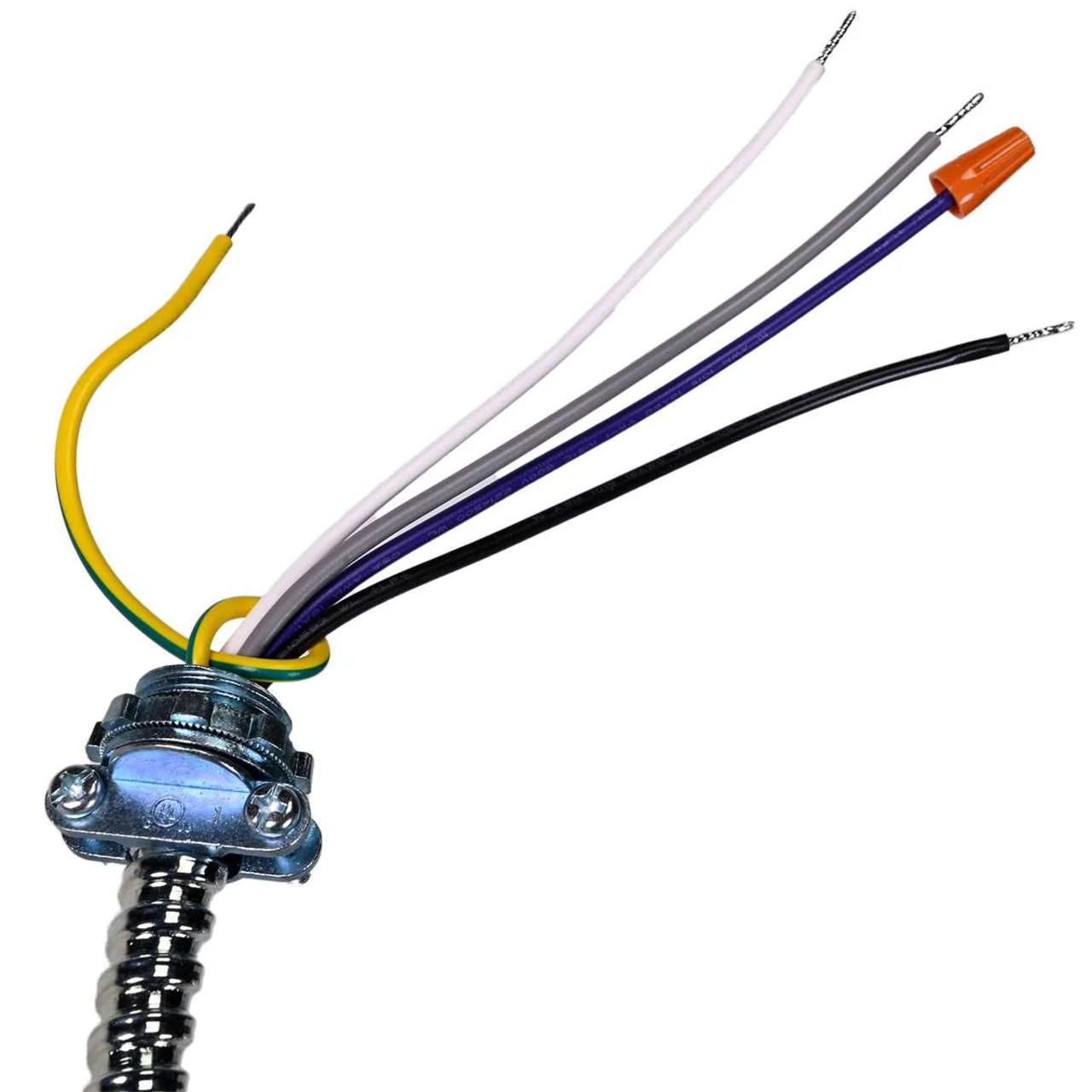

• Whip Length: 24"
