3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277V
HomeStore

3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277V

3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277V

$1.49

Original: $4.25

-65%
3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277Vβ€”

$4.25

$1.49

The Story

The photocell controller is a great addition to any parking light, street light, area light or any other application that requires dusk to dawn lighting. Made from high impact polycarbonate, this product comes standard with a transparent UV stabilized window. With twist lock terminals, the item meets the technical requirements of ANSI C136.10-2010 and the standard for Plug-In, Locking Type Photo-controls for use with Area Lighting UL773.This product is rated for use with 120-277VAC. Long lasting life cycle of greater than 50,000 cycles

Features time delay - will not allow the sporadic presence of car lights, lightning or other forms of light trip the controlled light to turn off.

  • Turn-ON Light Level -- 16Lux
  • Turn-OFF Light Level -- <24Lux
  • Time Delay -- 5-20s
  • Rated Loading -- 1800W Tungsten, 1800VA Ballast
  • 10A MAX

Product Dimensions - 3.3" Dia x 2.6" H

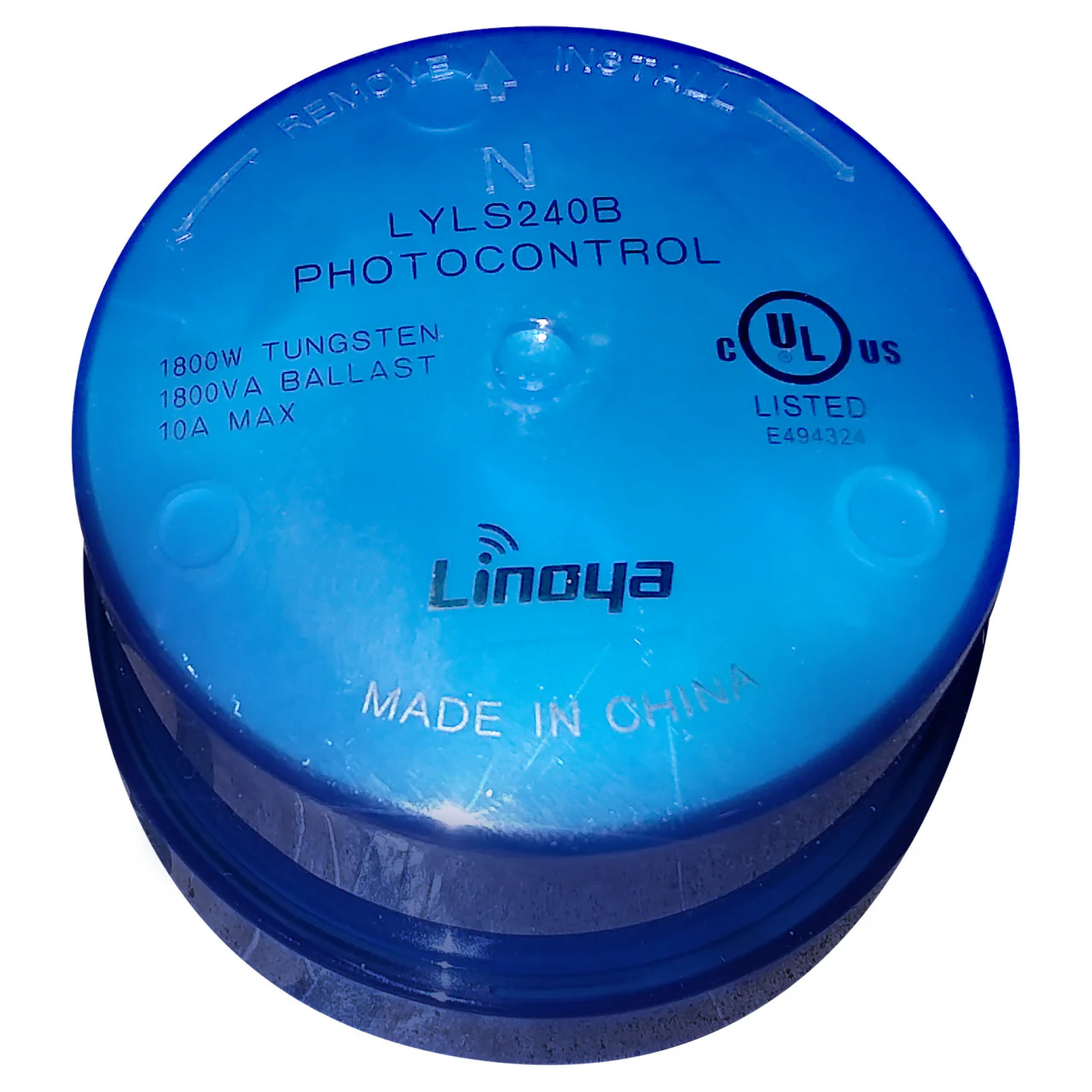

3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277V - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The photocell controller is a great addition to any parking light, street light, area light or any other application that requires dusk to dawn lighting. Made from high impact polycarbonate, this product comes standard with a transparent UV stabilized window. With twist lock terminals, the item meets the technical requirements of ANSI C136.10-2010 and the standard for Plug-In, Locking Type Photo-controls for use with Area Lighting UL773.This product is rated for use with 120-277VAC. Long lasting life cycle of greater than 50,000 cycles

Features time delay - will not allow the sporadic presence of car lights, lightning or other forms of light trip the controlled light to turn off.

  • Turn-ON Light Level -- 16Lux
  • Turn-OFF Light Level -- <24Lux
  • Time Delay -- 5-20s
  • Rated Loading -- 1800W Tungsten, 1800VA Ballast
  • 10A MAX

Product Dimensions - 3.3" Dia x 2.6" H
